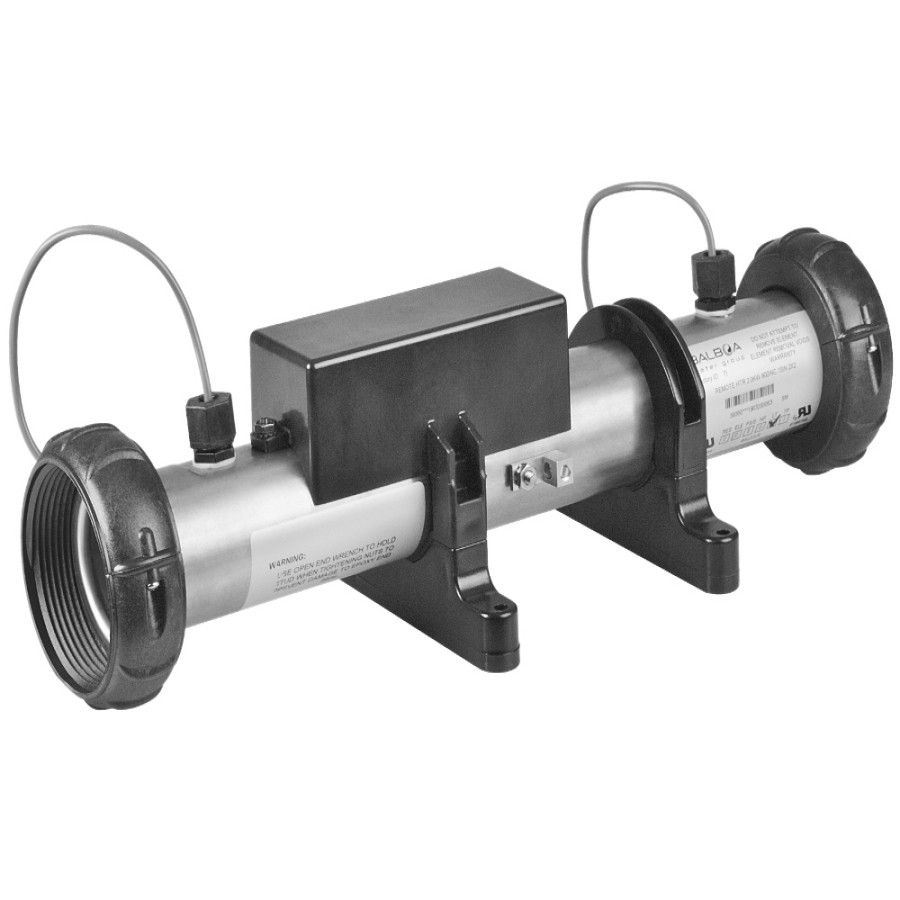

Remote Heater Balboa 2kW – 15 Inch GS100
(M7 Sensor Technology | AMP Plug | Includes Power Cable & Dual Probes)

This 2.0 kW remote heater from Balboa is fully compatible with the Balboa GS100 control system and is designed to provide reliable and consistent water heating performance for spas and hot tubs. It features integrated M7 sensor technology for accurate monitoring and protection, making it a dependable solution for maintaining your spa's optimal temperature.

This listing refers to the 2 kW version. A more powerful 3 kW model is also available for higher heat demands or colder climates.

Pre-Wired and Sensor-Ready:
The heater includes a pre-attached power cable (85 cm) with a 3-pin AMP plug for quick installation. Two factory-fitted M7 temperature sensors are integrated at each end of the heater tube, providing smart detection of water flow, direction, and potential restrictions such as dirty filters or airlocks.

Compact Option Available:
For installations where space is limited or where 1.5-inch plumbing is used, a shorter and more compact version of this heater is available.

Specifications:

Heater Length: 381 mm (15 inches) – standard/common size
Inner Diameter of Fittings: 60 mm – suitable for 2-inch pipe unions
Power Cable Length: 85 cm
Probe Cable Length: 88 cm
Power Output: 2.0 kW
Voltage: 230V
Frequency: 50/60Hz
Sensor Type: Dual M7 temperature probes
Plug Type: 3-pin AMP
Installation: Remote (not integrated in spa pack)

Connection Details:
The heater comes supplied with two clamping rings and O-ring gaskets to ensure a secure, leak-free connection. It is compatible with standard 2-inch pipe unions. For systems using 1.5-inch plumbing, adaptors are available separately.

Spare Parts and Accessories:
The original resistor for this heater can be purchased as a spare part. Additional replacement parts such as unions, O-rings, and M7 sensors are available as needed.

Reference Numbers:

Balboa 2 kW Version: 58350
Balboa 3 kW Version: 58351
Wellis 3 kW Version: ACM0713
Dream Maker Spas: 405011

Manufacturer Part Number (MPN): G7217/58350

This Balboa 2.0 kW remote heater provides dependable heating, easy installation, and advanced safety monitoring — making it an ideal replacement or upgrade for GS100-based spa systems.
