Balboa Spa touch 3 Clear 5 inch
+3
+2

Balboa Spa touch 3 Clear 5 inch

Store / Hot Tub Parts / Control Panels
SKU 00506
£379
1
Product Details

Product description :

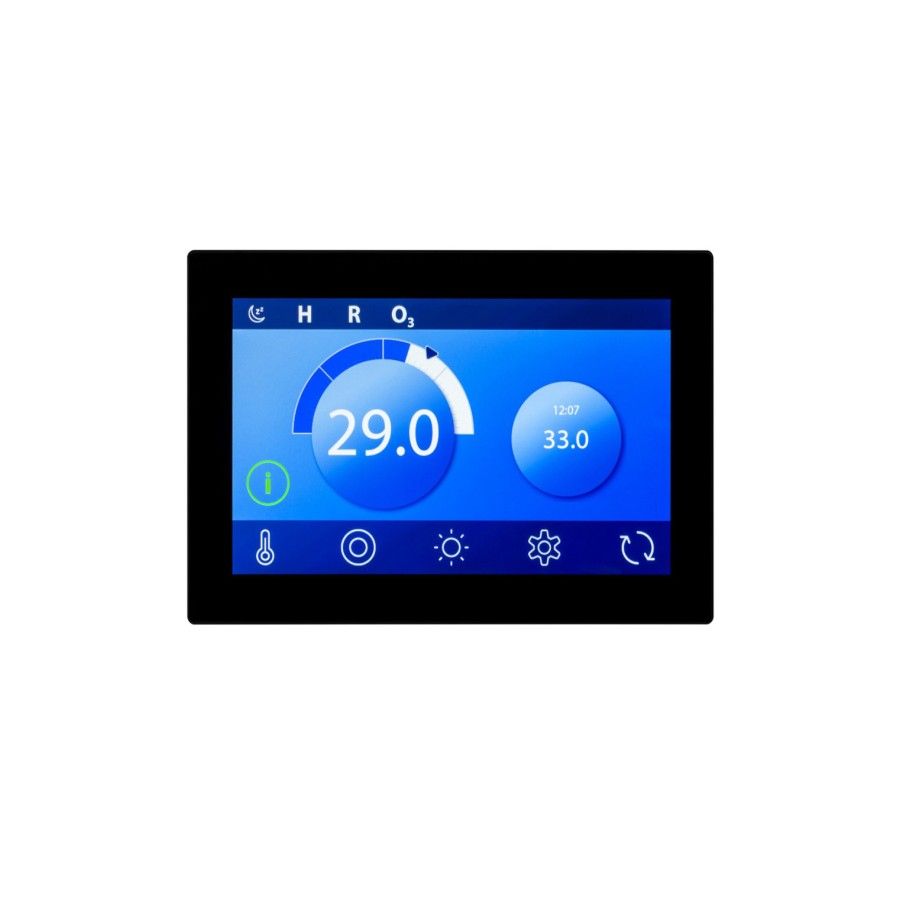

Balboa SpaTouch3™ – Clear ST3 C8Z (G8535-03)
5-inch High-Resolution Colour Touchscreen Display

The SpaTouch3™ is Balboa’s flagship control panel, designed to offer a "smartphone-like" experience for hot tub users. This specific model, the G8535-03, is part of the "Clear" series, featuring a sleek, glass-fronted aesthetic and a highly responsive capacitive touch interface.

The SpaTouch3 series was specifically designed to handle the advanced interface requirements of Balboa’s air-source heat pumps, allowing you to control heating, cooling, and the various energy-saving modes directly from the touchscreen.

Specifications:
Part Number: G8535-03 (Replaces 57254-07,57254-08).
Display Size: 5-inch diagonal high-resolution colour screen.
Technology: Capacitive Touch (works even with wet fingers).
Panel Series: ST3 (SpaTouch 3).
Configuration: C8Z compatible with Clim8zone heat pumps
Waterproof Rating: IPX5 (resistant to water ingress and steam).
Brand: Balboa

Dimensions:
Length: 146mm
Screen Size: 5-inch diagonal
Width: 102mm
Screen Thickness: 9mm
Depth: 30mm
Shell Drilling Area: 128mm x 83mm

Compatible Models:

The G8535-03 is designed to work exclusively with Balboa BP Series control systems. Common compatible packs include:

  • BP2100 / BP2000
  • BP601 / BP501
  • BP21-MS / BP21-G1

Product References:
Balboa: 57254-07, 57254-08
SWP Code: 01010104
MPN: 57254/G8535-03
