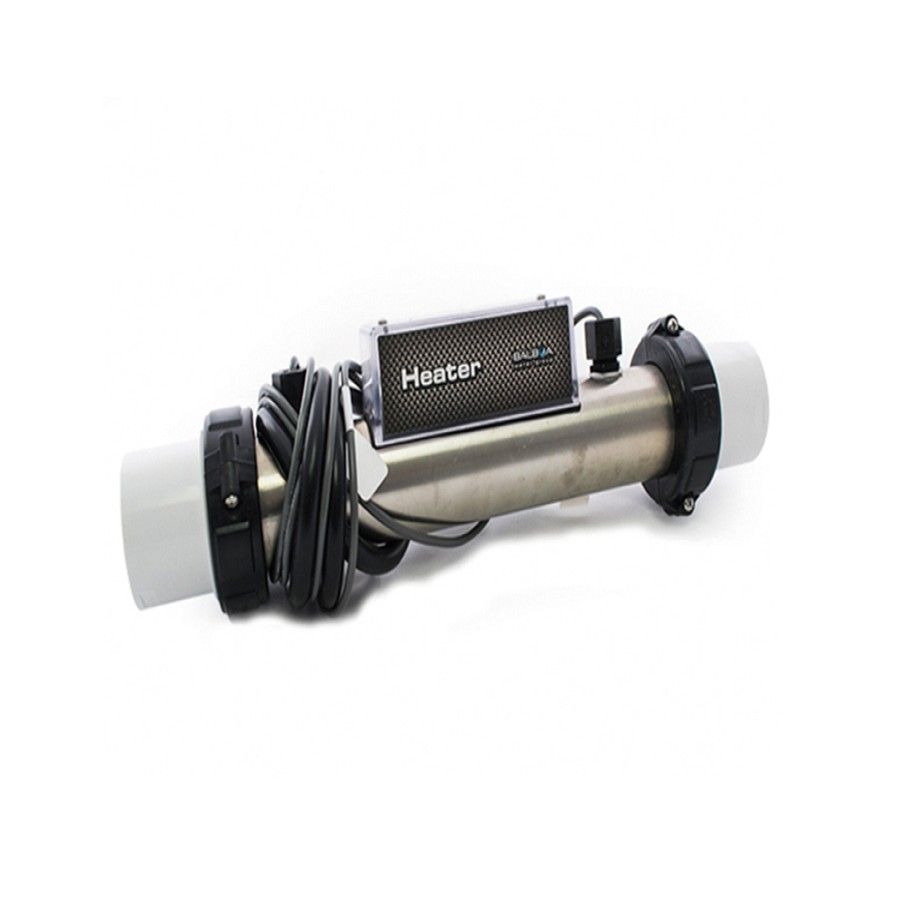

Balboa Heater Assembly for GS100 Control Box

(M7 Sensor Technology | 2.0 kW | AMP Connection)

This Balboa heater is designed for seamless integration with GS100 control boxes, featuring a durable plastic construction. Equipped with a state-of-the-art 24" M7 sensor technology, it ensures precise regulation of spa water flow and temperature.

This premium Balboa heater assembly is a reliable choice for maintaining optimal spa performance, delivering both superior functionality and ease of use.

Features:

• Convenient Connection: The heater connects effortlessly to the control box via an AMP plug cable, ensuring a secure and reliable setup. For more information

• Advanced Sensor Technology: This assembly includes two pre-mounted M7 sensors, positioned at both ends of the heater tube, ready for immediate connection to the control box. These sensors work in harmony, utilising sophisticated onboard software to monitor and regulate essential spa functions such as water flow and temperature. The technology intelligently adapts to the direction of water flow and is designed to detect any restrictions, including those caused by clogged or dirty filters.

• Ease of Installation and Maintenance: The heater is engineered for quick and hassle-free installation. The inclusion of split 2-inch buttress thread unions, complete with O-ring seals, facilitates simple servicing and troubleshooting. The unions are prepped to accept standard 2-inch glued pipework, ensuring compatibility with a variety of systems.

Specifications:

Type: Flow-Thru

Element Material: Incoloy

Integrated in Spa Pack: No

Sensor Type: M7 (Probe)

Mount Type: Stud

Length (Including Tails): 375 mm

Plumbing Connection: 2.0"

Electrical Information:

Power Output: 2.0 kW

Voltage / Frequency: 230V, 50/60Hz

Current Draw: 8.0 – 8.5 Amps

Element Details:

Element Material: Incoloy

Element Length: 10" (255 mm)

Terminal Spacing: 30 mm

MPN: G7214/58201-01
